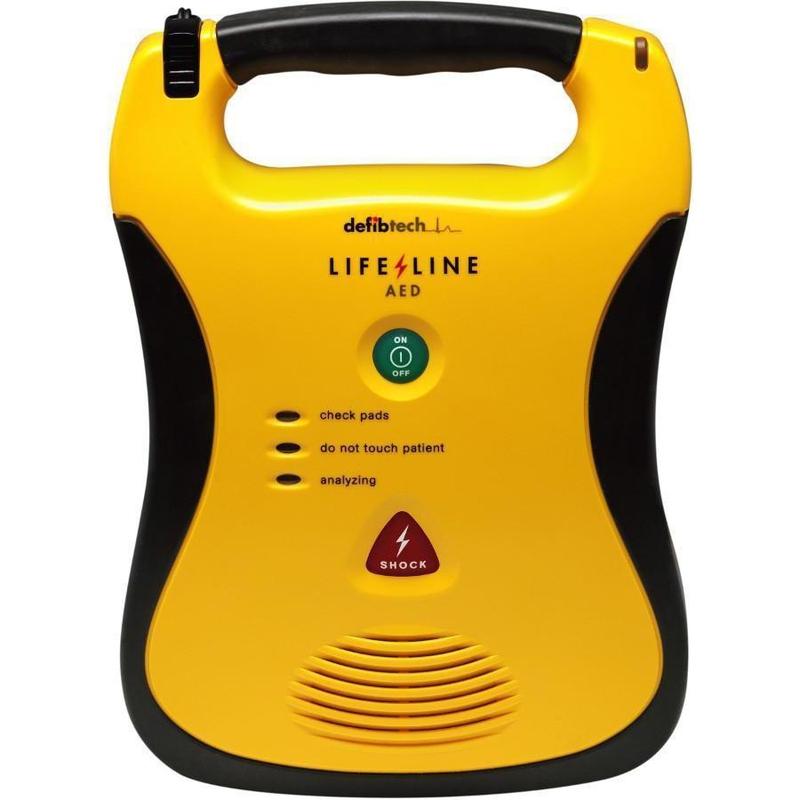

Defibtech Lifeline AED

Product Description
$1,245.00
Maximum quantity available reached.

Defibtech Lifeline AED Benefits

  • Easy to Use- audio and visual prompts guide the responder through the resuscitation process
  • Transportable and Durable- Light enough for a child to carry and strong enough for the military

Technologically Advanced and Affordable- State-of-the-art technology at a reasonable price Defibtech has created an AED that is both user-friendly and technologically advanced. The Defibtech Lifeline AED is an automated external defibrillator (AED) that can be used by medical professionals and the general public alike. This unique AED is easily operated, low-cost, high-tech and portable. It was built to provide both public and healthcare settings with a reliable and effective safety instrument. The Defibtech Lifeline AED can even be used in conjunction with hands-on CPR.

Uncomplicated and User-Friendly

Defibtech designed the Lifeline AED to be functional for all levels of responders. Sudden Cardiac Arrests (SCA) can take place anywhere and chances are a medical professional will not be around to defibrillate the victim when an attack happens. Defibtech has incorporated audible prompts and a visual text screen to provide an inexperienced responder with instructions on how to use the Lifeline AED in a safe and effective manner. The responder will be guided through the life-saving process from the moment they press the on-button to the time Emergency Medical Services (EMS) arrive. Most AEDs come with a carrying case that needs to be opened during the time of emergency. Defibtech has foregone this additional step, making the resuscitation process even simpler- all the responder has to do is press the on-button and the Defibtech Lifeline AED will begin its course of action.

Ventricular fibrillation is the most common form of SCA. Defibtech has used state-of-the-art technology, called biphasic defibrillation, to specifically target ventricular fibrillation. This technology increases the chances that the victim will only need to be shocked one time, ultimately increasing the survival rate of an SCA victim.

Although Defibtech’s Lifeline AED uses the newest and most advanced technology, it’s still affordable. Defibtech used a cost-effective method for designing its visual screen. Instead of using an LCD (liquid-crystal-display) screen, Defibtech has adopted the use of an LED (light-emitting diodes) screen. Not only has this modification reduced the price of the AED, it’s also upgraded the visual appeal of its text screen.

Transportable and Durable

The Defibtech lifeline AED is a combination of portability and durability. It was built to be transportable for civilians, as well as EMS workers, fire fighters and police officers. Although it only weighs 4.2 pounds, it was tough enough to withstand the US Military "drop and shock" requirements. It’s dust and water resistant.

Defibtech Lifeline AED Specs

The Defibtech Lifeline AED was purposely built to be aesthetically pleasing and non-intimidating so that a layperson would feel comfortable using this device to help resuscitate a victim of a sudden cardiac arrest (SCA). The Lifeline AED comes with a data card that holds up to 100 minutes of audio and ECG (electrocardiogram) information. An ECG is a procedure that records the heart’s electrical activity. This information is important and should be given to a healthcare professional if an attack occurs in order for the recording to be reviewed. Healthcare professionals can use the recording to determine when shocks were induced and the patient’s heart rhythm.

Most people without any medical skills will be skeptical to respond to an SCA. The event might cause distress and panic to those who are present during the attack. For the sake of a lay responder, automatic AEDS are easier to use because they provide an automatic shock. This eliminates an extra step in the process of resuscitating an SCA victim. However, automatic AEDS are limited and only a few brands offer them. Fortunately, Defibtech does offer an automatic model for only $50 more than the semi-automatic model.

AED Unit Warranty  Manufacturer's 8-year
Battery Warranty  Manufacturer's 5-year
Cost Of Ownership  Low Cost of AED Ownership
Maintenance Schedule  High AED Maintenance



Alternate Product ID: DCF-A120-EN

 8-Year Warranty   One Set of Adult AED Pads
 5-Year Battery
 9-volt Battery for AED Self Tests  AED/CPR First Response Kit
 AED Inspection Tag
 "AED On-Site" Window Static Sticker

Defibrillator

TYPE
Automatic external
defibrillator

MODELS
DDU-100A, DDU-100E

WAVEFORM
Biphasic Truncated Exponential
(Impedance compensated)

ENERGY
Adult: 150 Joules
Pediatric: 50 Joules
(nominal into 50 ohm load)

CHARGE TIME**

DBP-2800: Less than 6 seconds
DBP-1400: Less than 9 seconds

**Typical, with new battery at 25º C

VOICE PROMPTS
Extensive voice prompts
guide user through operation
of the unit and CPR

CPR PACING
Metronome

CONTROLS
– Lighted On/Off button
– Lighted Shock button

INDICATORS
– “check pads”
– “do not touch patient”
– “analyzing”
– AED status LED



Self Tests

AUTOMATIC
Automatic daily, weekly and
monthly and quarterly circuitry tests

BATTERY INSERTION
System integrity test on battery
insertion

PAD PRESENCE
Pads preconnected tested daily

USER-INITIATED
Unit and battery pack system
test may also be initiated by the
user

STATUS INDICATION
Visual and audible indication of
unit status


Patient Analysis System

PATIENT ANALYSIS
Automatically evaluates patient impedance for proper pad contact. Monitors signal quality and analyzes patient ECG for shockable/non-shockable rhythms

SENSITIVITY/SPECIFICITY
Meets AAMI-DF-39 specifications and AHA recommendations

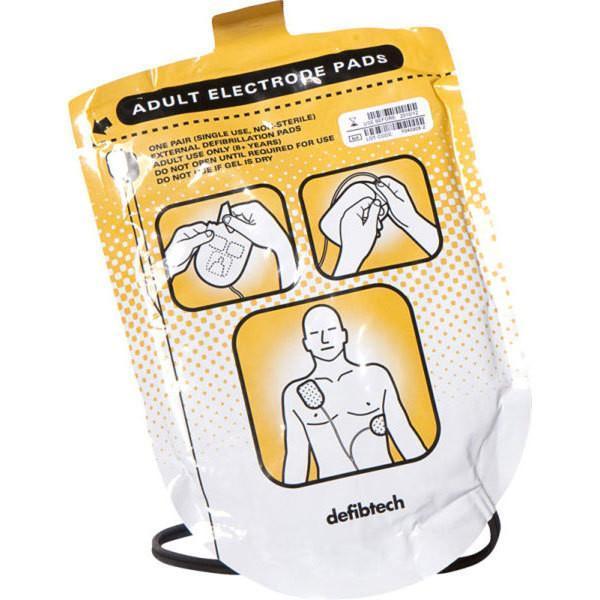

Defibrillation / Monitoring Pads

MODEL
Adult – DDP-100
Child/Infant – DDP-200P

TYPE
Pre-connected, single-use, non-polarized, disposable, self-adhesive electrodes with cable and connector

SURFACE AREA
103 cm2 (nominal, each pad)
50 cm2 (nominal, each pad)

PAD PLACEMENT
Adult – Anterior/Anterior
Child/Infant – Anterior/Posterior

CABLE LENGTH (typical)
48 in (122 cm)




Environmental

TEMPERATURE
Operating: 0 to 50°C (32 to 122°F)
Standby: 0 to 50°C (32 to 122°F)
(with battery installed)

RELATIVE HUMIDITY
Operating / Standby: 5% – 95%
(non-condensing)

ALTITUDE
-500 to 15,000 ft (-150 to 4500 m) per MIL-STD-810F 500.4 Procedure II

VIBRATION
Ground (MIL-STD-810F 514.5 Category 20)

Helicopter (RTCA/DO-160D, Section 8.8.2, Cat R, Zone 2, Curve G)

Jet Aircraft (RTCA/DO-160D, Section 8, Cat H, Zone 2, Curves B & R)

SHOCK / DROP ABUSE TOLERANCE
MIL-STD-810F 516.5 Procedure IV (1 meter, any edge, corner, or surface, in standby mode)

SEALING / WATER RESISTANCE
IEC60529 class IP54; Splash Proof, Dust Protected (Battery Pack installed)

ESD
EN61000-4-2:2009 (open air up to 15kV or direct contact up to 8kV)

EMC (Emission)
EN60601-1-2:2001 +A1:2006, limits EN55011:1998 +A1:1999 +A2:2002 Group 1 Level B, method

EMC (Immunity)
EN60601-2-4:2003, limits EN 61000-4-3:2002 Level 3 (10V/m), method

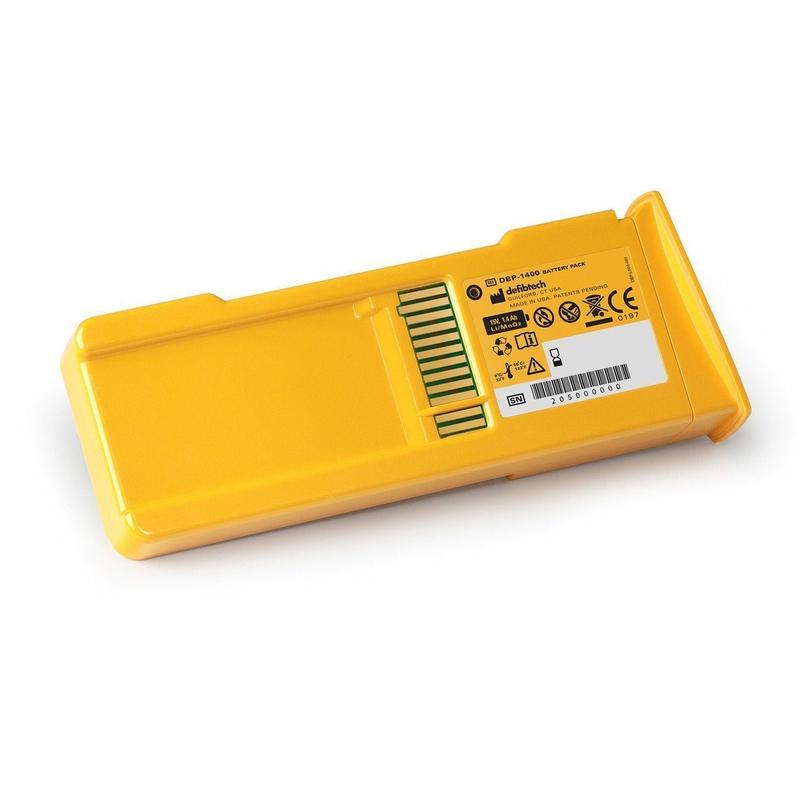

Battery Pack

TYPE
– Lithium/Manganese Dioxide
– Disposable, recyclable, non rechargeable

LOW BATTERY INDICATORS
– Visible
– Audible

MODEL DBP-2800

POWER
15V, 2800 mAh

CAPACITY **
– 300 shocks or 16 hours continuous operation

STANDBY-LIFE**
– 7 years

MODEL DBP-1400

POWER
15V, 1400 mAh

CAPACITY**
– 125 shocks or 8 hours
continuous operation

STANDBY-LIFE**
– 5 years

**Typical, with new battery at 25º C





Event Documentation

INTERNAL EVENT RECORD
Critical ECG segments and rescue event parameters are recorded and can be downloaded to a removable data card

PC-BASED EVENT REVIEW
ECG with event tag display, and audio playback when available

REMOVABLE STORAGE
(optional) Up to 12 hours of ECG and event data storage (no audio option) or up to 2 hours of audio, ECG and event storage (audio option) on a removable data card. Actual length of storage is dependent on card capacity.



SIZE

8.5 x 11.8 x 2.7 inches
(22 x 30 x 7 cm)

WEIGHT (Approximate)
With DBP-1400: 4.2 lbs (1.9 kg)
With DBP-2800: 4.4 lbs (2.0 kg)






Vendor: Defibtech
